Product

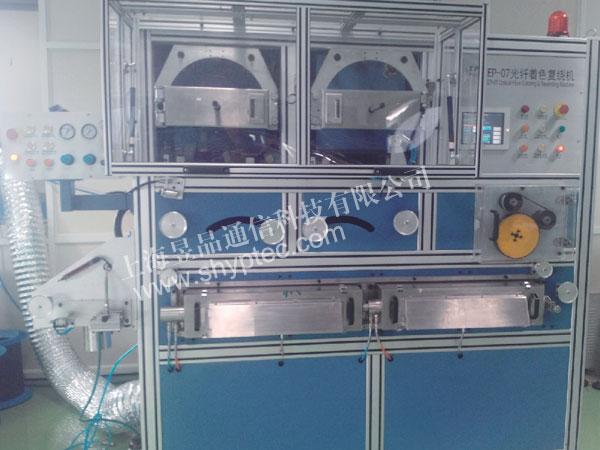

Optical fiber coloring and rewinding machine

Application

This machine is designed for coloring and rewinding the fiber. We adopt auto-tracking traversing unit, pressure coating system, UV auto-adjust power supply, automatically take-up traversing unit. This machine occupies 40% in the optical fiber coloring filed around the world.

Technical Data

Line speed 3000m/min

Fiber tension 0.3-1.5±0.05N

Payoff/ take up reel size 25km, 50km

Reel size

Reel flange dia 236-300mm

Reel width 108-250mm

Shaft bore dia 25.4mm

Reel weight 10kg

Metering accuracy ≤1‰

Additional loss ≤0.02db/km (SM. Fiber)
