Product

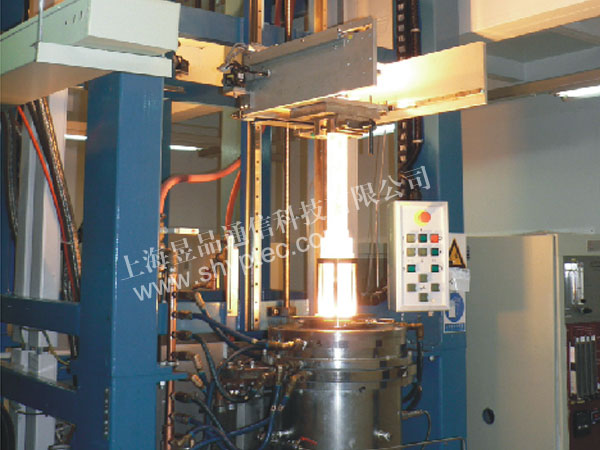

Optical fiber drawing tower

Application

This drawing tower is used to produce high quality silica optic-fibre

Technical Data

One tower one line or one tower two line

Tower height: 30m

Drawing speed: 2500m/min

Preform dia :Φ80~200×3000mm

Graphite furnace temperature :2500±2℃

Fiber diameter: Φ245±3μm

Take-up reel :Φ405mm×Φ50mm×270mm

Tower configuration

Preform feeding unit Coating concentric tester
Graphite furnace UV curing system
Diameter gauge Diameter gauge
Cooling system Fiber PMD twister
Auxiliary capstan Tension testing device
First coating system Capstan
Coating concentric tester Tension dancer
UV curing system Dual automatic take up
Diameter gauge Electrical control system
Second coating system
